March 28, 2022 NHTSA CAMPAIGN NUMBER: 22V196000
Trunk Emergency Release May Fail/FMVSS 401
A person inside the trunk compartment may become trapped, increasing their risk of injury.
NHTSA Campaign Number: 22V196
Manufacturer Hyundai Motor America
Components LATCHES/LOCKS/LINKAGES
Potential Number of Units Affected 63,461
Summary
Hyundai Motor America (Hyundai) is recalling certain 2020 Sonata and Sonata Hybrid, and 2019 Genesis G70 vehicles. The trunk latch may become damaged, preventing the opening of the trunk from the inside. As such, these vehicles fail to comply with the requirements of Federal Motor Vehicle Safety Standard number 401, “Internal Trunk Release.”
Remedy
Dealers will inspect the trunk latch and replace the trunk latch base, as necessary, free of charge. Owner notification letters were mailed May 26, 2022. Owners may contact Hyundai customer service at 1-855-371-9460. Hyundai’s number for this recall is 221/010G.
Notes
Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.nhtsa.gov.
Check if your Genesis has a Recall
Description of Campaign:
On certain G70 (IK) vehicles, the trunk latch pawl can thermally contract when exposed to high ambient temperatures. An attempt to release the pawl and open the trunk lid in this condition could result in damage to the pawl, preventing opening of the trunk lid through actuation of the emergency trunk release and presenting risk of injury to an occupant locked in the trunk.
Customer Notification
Owners are expected to be notified in late May 2022 of a remedy available for their vehicles. As of 04/02/2022, NHTSA has posted this recall.
Customer FAQs
Q1: What is the issue?
A1: The trunk latch pawl in the subject vehicles can thermally contract when exposed to high ambient temperature. When engaged under this condition, an attempt to release the pawl and open the trunk lid could result in damage to the pawl.
Q2: What is the safety concern?
A2: A damaged pawl could prevent opening of the trunk lid through actuation of the emergency trunk release, which could increase the risk of injury to occupants. As such, the involved vehicles might not comply with Federal Motor Vehicle Safety Standard No. 401, “Interior Trunk Release.”
Q3: Have there been any accidents or injuries?
A3: As of the date of the filing on 03/28/22, Hyundai/Genesis has identified 169 reports received from February 22, 2019 – February 10, 2022, alleging the recall condition in the U.S. market. Hyundai/Genesis is not aware of any confirmed crashes, injuries, or fires related to the recall condition.
Q4: What will be done during this recall service at the dealer?
A4: All owners of the subject vehicles will be notified by first class mail with instructions to bring their vehicles to a Genesis retailer for an inspection of the trunk latch base, and if necessary, replacement with revised parts. This remedy will be offered at no cost to owners for all affected vehicles, regardless of whether the affected vehicles are still covered under Genesis’ New Vehicle Limited Warranty.
Additionally, Genesis will provide owners of affected vehicles reimbursement for out-of-pocket expenses incurred to obtain a remedy for the recall condition in accordance with the reimbursement plan submitted to NHTSA on February 24, 2022.
MAY, 2022
22-01-046G
TRUNK LATCH BASE REPLACEMENT (RECALL 010G)
IMPORTANT
*****RETAIL VEHICLES*****
As required by federal law, dealer must not deliver new vehicle for sale or for lease to customers until all open recalls have been performed. Dealers should also perform all open recalls on used vehicles, demo, and rental vehicles prior to placing them into customer use and whenever an affected vehicle is in the shop for any maintenance or repair.
Description: On certain G70 (IK) vehicles, the trunk latch pawl can thermally contract when exposed to high ambient temperatures. An attempt to release the pawl and open the trunk lid in this condition could result in damage to the pawl, preventing opening of the trunk lid through actuation of the emergency trunk release and presenting risk of injury to an occupant locked in the trunk. This bulletin describes the procedure to inspect and if necessary, replace the trunk latch base with improved parts.
Applicable Vehicles: Certain 2019MY G70 (IK) vehicles produced between 5/2/2018 – 5/7/2019
Parts Information:
Part Name | Part Number |
Trunk lid latch base | 81231-G9001QQH |
Refer to the QR code or link below for guided video information:
Genesis Service Learning – Recall 010G Service Procedure
Inspection Procedure
1. Open the trunk of the vehicle.
NOTICE
The inspection can be performed without removing any parts.
2. Measure the trunk latch to determine which type it is.
If the trunk latch is approximately 2-3/8″ (58 mm) wide at the base, it is a type A latch and the trunk latch base needs to be replaced. Proceed to the next section for the repair procedures.
If the trunk latch is approximately 4-1/4” (101 mm) wide at the base, it is a type B latch and does not need to be replaced.
No further action is required and the inspection is complete.
Service Procedure
1. Remove the clips (A) on the trunk lid hinge cover and slide the cover downwards.
Repeat on the hinge cover on the opposite side.
2. Remove the screw inside the trunk lid pull handle (B).
NOTICE
Only remove the screw from the trunk lid pull handle. The pull handle can remain attached to the trunk lid trim.
3. Remove the clips of the trunk lid trim and remove the trim.
4. Disconnect the trunk lid latch connector (C).
5. Remove the trunk latch assembly (D).
6. Remove the trunk latch assembly screws.
7. Replace the trunk lid latch base (E) and reuse the actuator (F).
Tightening Torque:
5.1 – 8.0 ft-lb (6.9 – 10.8 Nm)
8. Reinstall all parts in the reverse order of removal.
NOTICE
When reinstalling the latch assembly, install the bolts in the indicated order.
Tightening Torque:
5.8 – 8.7 ft-lb (7.8 – 11.8 Nm)
9. After reassembly, verify that the trunk and emergency release lever both operate properly.
10. The service procedure is now complete.
RECALL 221/010G ATTACHMENT A
CHRONOLOGY OF EVENTS LEADING UP TO DEFECT DECISION [AMENDED]
❖ February 2022
On February 7, 2022, HMA issued a Quality Information Report (“QIR”) to HMC noting a trending rate of claims related to an inability to open the trunk on certain model year Hyundai Sonata and Sonata HEV vehicles. NASO’s Data Review Committee (“DRC”) reviewed the market analysis on February 16, 2022 and decided to escalate the investigation to the Technical Review Committee for further analysis.
❖ March 2022
During routine discussion regarding ongoing safety-related investigations, HMC notified HMA’s NASO that the pawl material used on Sonata-equipped trunk latches was changed in April 2020 as a level-up countermeasure aimed at withstanding thermal contraction and possible breakage when attempting to disengage the pawl. HMC confirmed that similar pawls were installed in certain model year Genesis G70 vehicles equipped with non-powered trunk lids; however powered trunk lids, which use a different pawl design, were installed on all G70 vehicles produced after May 8, 2019. NASO’s TRC noted that a damaged trunk latch pawl could compromise full operation of the trunk’s emergency release lever and result in a noncompliance with FMVSS No. 401 “Interior Trunk Release” referring back to prior investigations and discussion with the agency related to Recall 208, which addressed a similar defect condition. HMC confirmed that the pawls associated with Recall 208 were produced with a different Tier 2 supplier than the pawls in this subject recall, and thus were investigated separately and corrected in production in October 2017.
Based on this information, on March 21, 2022, NASO convened its North American Safety Decision Authority and decided to file a new noncompliance recall to address the condition in all affected Hyundai/Genesis vehicles in the U.S. and Canada.
As of the date of this filing, Hyundai has identified 169 reports received from February 22, 2019, through February 10, 2022, alleging the defect condition in the U.S. market. Hyundai is not aware of any confirmed crashes, injuries or fires related to the recall condition.
3 Affected Products
Vehicles
MAKE | MODEL | YEAR |
GENESIS | G70 | 2019 |
HYUNDAI | SONATA | 2020 |
HYUNDAI | SONATA HYBRID | 2020 |
16 Associated Documents
Recall Acknowledgement
Noncompliance Notice 573 Report
RCLRPT-22V196-8450.PDF 216.313KB
Manufacturer Notices(to Dealers,etc)
RCMN-22V196-2268.pdf 261.465KB
Attachment A – Amended Chronology
RMISC-22V196-8710.pdf 101.624KB
Recall 573 Report – May 18, 2022
RCLRPT-22V196-5799.PDF 214.935KB
Remedy Instructions and TSB
RCRIT-22V196-2177.pdf 475.681KB
Remedy Instructions and TSB
RCRIT-22V196-2285.pdf 868.743KB
Owner Notification Letter(Part 577)
RCONL-22V196-8295.pdf 282.392KB
Owner Notification Letter(Part 577)
RCONL-22V196-7612.pdf 269.884KB
Manufacturer Notices(to Dealers,etc)
RCMN-22V196-5774.pdf 317.093KB
Manufacturer Notices(to Dealers,etc)
RCMN-22V196-9470.pdf 245.509KB
Recall Quarterly Report #1, 2022-2
RCLQRT-22V196-3778.PDF 211.156KB
Recall Quarterly Report #2, 2022-3
RCLQRT-22V196-8760.PDF 211.26KB
Recall Quarterly Report #3, 2022-4
RCLQRT-22V196-7410.PDF 211.351KB
ISSUED Renotification Notice
RCRN-22V196-2831.pdf 400.145KB
ISSUED Renotification Notice – Email Notification
RCRN-22V196-4677.pdf 198.914KB
Latest Recalls Documents
For the Latest and Most Recent Recalls Information Visit the link below…
https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=22V196&docType=RCL
- REPLACEMENT VELOSTER HATCH RELEASE BUTTON WITH CAMERA - 81260-2V010 outside hdl & lock assembly helps to open the rear hatch at ease. Constructed of premium material for long lasting durability and reliability.
- FITS THE FOLLOWING VEHICLES - For 2012 2013 2014 2015 2016 2017 Hyundai Veloster with 1.6 Liter L4 Engine Gas. REPLACE PART # - 81260-2V010, 812602V010. Please kindly check the fitment and part number before ordering, Thanks!
- WHAT YOU’LL GET - 1 x 81260-2V010 Hatch Button Trunk Latch with Camera, 12-MONTH Warranty and LIFETIME Technical Support. If the trunk button replacement ever fails on your Veloster including years 12 13 14 15 16 17 wih 1.6 Liter Engine, please don’t hesitate to contact us for a replacement. True hassle-free shopping experience 🙂
- OE Number: 81260-A5000, 81260A5000. Please check you part number before placing an order, to ensure a proper fit.
- Fitment: Tailgate release switch for Hyundai Elantra GT Base 1.8L L4 - Gas 2013, for Hyundai Elantra GT Base 2.0L L4 - Gas 2014-2017
- Material: Tailgate door handle is made from durable plastic materials, reliable performance, not easy to deform, and long service life.
- Function: Rear liftgate handle switch will help your vehicle rear door handle restore normal operation, solve the trunk cannot open, latch, lock or remotely unlock latch and other issues.
- Easy installation: Secure fit connector is plug and play, directly replace your defective or broken rear door handle.
- Fitment: for Hyundai Sonata 2015 2016 2017.Please make sure your car model before purchasing.
- Replace Part Number:81260C1010,81260-C1010,81260 C1010, 812 60C 10 10, 81 26 0C 10 10, 812 60 C10 10.Please double check the part number of your own one.
- Function:The trunk cover outer lock handle helps to easily open the rear door, and the trunk lock keeps the trunk or tailgate locked for protection.
- Note:The screw holes are only suitable for 2mm self-tapping screws. If the size of the car screw parts is too large, please replace them with suitable size screws for installation.
- Easy to install:Directly replace the damaged outside trunk lid lock handle with just a few tools and a few minutes of your time.
- Compatibility: Compatible with 2012 2013 2014 2015 2016 2017 Hyundai Veloster with 1.6 Liter L4 Engine Gas. Please kindly check the fitment and part number before ordering, Thanks!
- Perfect Fit: OEM design, direct fit. Very easy to install, according to the original equipment design. Even though this is not a real part, it is just an aftermarket replacement, but it performs better, lasts longer and costs less,save time and hundreds of dollars by replacing back hatch button by yourself
- Replacement Part Number: Displace# 81260-2V000, 812602V000 | Direct replacement for a proper fit and easy installation, quality materials used, 100% rigorously tested.
- Replacement hatch release button without camera replacement hatch release button without camera, high quality materials for improved reliability and longer service life. You can order with confidence
- What You'll Get: 1 x 81260-2V000 Trunk Release Button. If you have any questions, please feel free to contact us and we will get back to you as soon as possible. Thank you for your purchase.

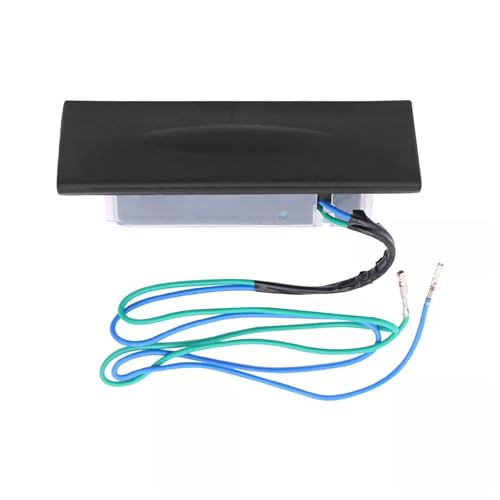

- [Part Number] 81260-A5000
