April 14, 2022 NHTSA CAMPAIGN NUMBER: 22V258000
Hydrogen Gas Detection Sensors May Fail
A hydrogen gas leak can increase the risk of a fire while parked or driving.
NHTSA Campaign Number: 22V258
Manufacturer Hyundai Motor America
Components FUEL SYSTEM, OTHER, ELECTRICAL SYSTEM
Potential Number of Units Affected 922
Summary
Hyundai Motor America (Hyundai) is recalling certain 2019-2021 Nexo vehicles. The hydrogen gas detection sensors may fail to detect leaks in the hydrogen gas delivery system.
Remedy
Owners are advised to park their vehicles outside and away from structures until the recall remedy is completed. Dealers will replace the hydrogen gas detection sensors, free of charge. Owner notification letters were mailed August 12, 2022. Owners may contact Hyundai customer service at 1-855-371-9460. Hyundai’s number for this recall is 225.
Notes
Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.nhtsa.gov.
Check if your Hyundai has a Recall
Description of Campaign:
Certain 2019-2021MY NEXO (FE) vehicles may exhibit degradation in performance of the Hydrogen leak detection sensor caused by contamination of the sensor during manufacturing. The TSB 22-01-062H outlines the procedure to replace the Hydrogen Leak Detection Sensor located at the Fuel Processing System (FPS), the Fuel Stack Housing, and the Hydrogen Storage Tanks.
Affected Vehicles:
- Certain 2019-2021MY Hyundai NEXO vehicles produced from 08/10/2018 – 06/28/2021 by Hyundai Motor Company (“HMC”) for sale in the U.S.
- To check vehicle specific recall applicability, access the “Vehicle Information” screen (VIS) via WebDCS. Ø As of this remedy launch, there are no new vehicles currently in dealer stock.
The Fix:
Remove and replace all three (3) of the Hydrogen Leak Detection Sensors.
- Estimated Repair Time : 7 M/H
Recommended Alternative Transportation: It is recommended that Service Rental Cars (SRCs) be made available and provided for customers during the repair.
Customer Notification
NHTSA has posted this recall. Owners are expected to be notified in August 2022 of a remedy available.
Customer FAQ:
Q1: What is the issue?
A1: The hydrogen gas detection sensors in the subject vehicles may degrade over time, resulting in an inability to detect leaks in the hydrogen gas delivery system and illuminate the associated warning light.
Q2: What is the safety concern?
A2: A failure to alert the operator of a hydrogen gas leak could increase the risk of a vehicle fire while parked or driving.
Q3: Can owners continue driving these vehicles? Should they park them indoors or outdoors?
A3: Owners can continue driving these vehicles. However, Hyundai strongly recommends parking their vehicles outside and away from structures until the recall remedy is completed.
Q4: Has there been any accidents or injuries?
A4: If a customer does not feel safe driving in his/her vehicle, he/she should bring his/her vehicle to the dealership and be put in a service rental vehicle until the remedy is completed.
Q5: Has there been any accidents or injuries?
A5: As of the date of filing to NHTSA (04/14/2022), there were no related fires or injuries in the U.S. or Canada.
Q6: What will be done during this recall service at the dealer?
A6: Owners can continue driving these vehicles. However, Hyundai strongly recommends parking their vehicles outside and away from structures until the recall remedy is completed. All owners of the subject vehicles will be notified by first class mail with instructions to bring their vehicles to a Hyundai dealer to have the hydrogen gas detection sensors replaced.
This remedy will be offered at no cost for all affected customers.
Q7: What if the owner incurred out-of-pocket expenses for obtaining a remedy for the recall condition?
A7: Hyundai will provide owners of affected vehicles reimbursement for out-of-pocket expenses incurred to obtain a remedy for the recall condition in accordance with the reimbursement plan submitted to NHTSA on February 24, 2022.
22-01-062H
July 2022
HYDROGEN LEAK DETECTION SENSOR REPLACEMENT (RECALL 225)
IMPORTANT
*** Retail Vehicles ***
Vehicle repairs related to safety recalls are critically important and must be performed properly in accordance with TSB procedures. Review this bulletin in its entirety prior to beginning any repair work.
As required by federal law, dealer must not deliver new vehicles for sale or for lease to customers until all open recalls have been performed. Dealers must also perform all open recalls on used vehicles, demo, and rental vehicles prior to placing them into customer use and whenever an affected vehicle is in the shop for any maintenance or repair.
Description: Certain 2019-2021MY NEXO (FE) vehicles may exhibit degradation in performance of the Hydrogen leak detection sensor caused by contamination of the sensor during manufacturing. This bulletin outlines the procedure to replace the Hydrogen Leak Detection Sensor located at the Fuel Processing System (FPS), the Fuel Stack Housing, and the Hydrogen Storage Tanks.
Applicable Vehicles: Certain 2019-2021MY NEXO (FE) vehicles produced from 08/10/18 – 06/28/21
Chronology :
January 2022
On January 17, 2022, HMC received information regarding a manufacturing change implemented by the supplier to increase the platinum particle size on the catalyst component(s) of the hydrogen gas detection sensors equipped in certain 2019-2021 model year Nexo vehicles in South Korea. HMC notified HMA’s NASO of the changepoint on January 24, 2022, prompting a new joint investigation into the condition and its potential effect on vehicles in the field. NASO began a review of field information for potential incidents in the U.S. related to the reported condition.
February 2022
NASO completed its review of U.S. field information and found no incidents had occurred in the U.S. Per a request made by HMC’s investigative team, NASO recovered two (2) functional sensors from in-use fleet vehicles and sent them to HMC for replication testing and root cause analysis.
March 2022
In early to mid-March, NASO continued to actively monitor field information for potential incidents. No incidents were found during this time. Two (2) additional functioning sensors from fleet vehicles were recovered and sent to HMC to aid in testing on March 24, 2022.
On March 30, 2022, HMC shared its findings with NASO. According to HMC, laboratory testing confirmed that the smaller platinum particle size on the sensor catalysts allowed for silicon to accumulate on the catalyst surface and create a film that lowered the sensor’s ability to detect hydrogen gas concentration. HMC informed NASO and advised of potential vehicles affected in the U.S. and Canada.
April 2022
Based on the information received from HMC, on April 7, 2022, NASO convened its North America Safety Decision Authority and decided to conduct a new recall of affected Hyundai Nexo vehicles in the U.S. to address the defect condition involving the hydrogen gas detection sensor(s).
As of the date of this filing, there are no confirmed fires, injuries, or related incidents in the U.S.
3 Affected Products
Vehicle
MAKE | MODEL | YEAR |
HYUNDAI | NEXO | 2019-2021 |
12 Associated Documents
Defect Notice 573 Report
RCLRPT-22V258-4722.PDF 214.573KB
Recall Acknowledgement
RCAK-22V258-6074.pdf 645.197KB
Manufacturer Notices(to Dealers,etc)
ISSUED Interim Owner Notification Letter(Part 577)
RIONL-22V258-5446.pdf 327.294KB
Remedy Instructions and TSB
RCRIT-22V258-4732.pdf 814.679KB
Manufacturer Notices(to Dealers,etc)
RCMN-22V258-1037.pdf 495.368KB
ISSUED Owner Notification Letter(Part 577)
RCONL-22V258-6121.pdf 226.407KB
Recall Quarterly Report #1, 2022-3
RCLQRT-22V258-5932.PDF 211.13KB
ISSUED Renotification Notice
RCRN-22V258-4237.pdf 117.246KB
Recall Quarterly Report #2, 2022-4
RCLQRT-22V258-8890.PDF 211.237KB
ISSUED Renotification Notice
RCRN-22V258-1797.pdf 193.798KB
ISSUED Renotification Notice
RCRN-22V258-1331.pdf 194.358KB
Latest Recalls Documents
For the Latest and Most Recent Recalls Information Visit the link below…
https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=22V258&docType=RCL
- GasDog detector with remote control and sound & light alarm can 24h continuously monitor HCN gas concentration.
- HCN Hydrogen Cyanide fixed gas detector is a wall mounted gas monitor installed in pipelines and confined spaces, with measuring range from 0 to 10/20/50/100ppm,signal output RS485.
- Fixed HCN Hydrogen Cyanide gas detector is equipped with an advanced gas sensor and remote control to detect and monitor HCN gas concentration, displaying real-time data and providing sound & light alarm.
- The infrared controller of fixed hydrogen cyanide leak detector can remotely control alarm point settings, zero calibration, and address modification.
- GasDog fixed gas detector has a self-calibration function and uses three standard buttons for on-site maintenance.

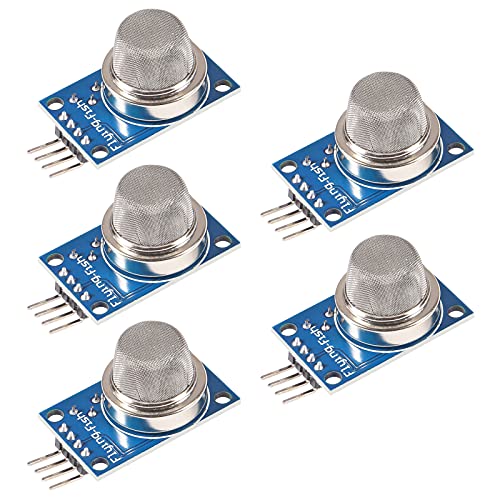

- MQ-8 Hydrogen Gas Sensor H2 Detection Sensor Module
- Size: 32 mm X22mm X27mm
- Main chip: the LM393, MQ-8 gas sensor
- Working voltage: DC 5V
- TTL output valid signal for low level. (when the low output electric signal lights at
- MQ-8 Hydrogen Gas Sensor
- Input Voltage : DC5V & Power consumption ( current ): 150mA & DO output: TTL digital 0 and 1 ( 0.1 and 5V) & AO output:0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
- Special note: After the sensor is powered , needs to warm up around 20S, measured data was stable , heat sensor is a normal phenomenon , because the internal heating wire , if hot is not normal .
- Size: 32(L)x20(W)x22(H)mm/1.26"x0.79"x0.76"
- Package Include: 2PCS MQ-8 Sensor Module
- Detection range of the Portable Gas Leak Detector: Approximately 1000 to 10,000 ppm (*based on Methane).
- High-Sensitive and Accurate Measurement: The combustible gas detector with high-quality imported gas sensors, excellent sensitivity, and excellent repeatability. Open and use directly.
- Fast Zero Calibration: Long right-press 3 seconds. Please make sure the environment is pure.
- Flexible&Portable Combustible Gas Leak Detector: 11.8-Inch Flexible Sensor Gooseneck and Long capacity 1800mAh battery for long continuous working time.
- 【100% Satisfied Warranty】3 YEARS LIMITED WARRANTY, If your gas leak detector has any quality problem, please contact us by Email. we will give you a SATISFACTORY SOLUTION.
- 🔋ACCURACY: Made to detect pure hydrogen chloride gas (HCl) in air, 0 - 20 ppm with 0.1 ppm resolution. Comes FACTORY-CALIBRATED.
- ⚛️ DETECT: Electrochemical cell sensor with error ≤ ± 5% F.S. and response time: T < 30 sec. Zero and span calibration options. Comes factory-calibrated.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached. Alarms come with digital time stamping and logging.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof with belt clip. Rechargeable Li-ion battery 1500 mAh via micro-USB cable, comes with all accessories.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **
- Long life, high sensitivity, low drift, stable and reliable work
- Sensor fault self test, two levels of alarm, with the relay output function
- LCD or LED gas concentration digital display and working status display
- This instrument can meet the gas detection field sound and light alarm, and real-time display monitor the gas concentration, the field debugging using infrared remote control, no need to open the lid can be set parameters.
- The fixed Gas Detector can be air leakage of the gas concentration signal change into the electrical signal transmitting, instrument can use three wire 4 to 20mA or four RS485 bus output, with long transmission distance and anti-jamming etc.
- 【Rechargeable Gas Leak Detector】 TopTes PT520B+ Gas Detector could quickly and accurately detect gas leaks from hard-to-reach areas for methane, propane, natural gas, LPG, etc. PT520B+ could recharge more than 3000 times. *Note: Please allow 30 seconds of warm-up time before the operation
- 【Visual & Audible Alarm】 TopTes PT520B+ could respond to gas leaks in 0.5s. The current gas concentration will be displayed in PPM or %LEL in four-digit reading. Besides, 11 colored bars and 75dB alarm will warn you out of danger and lead to gas leakage. Visual and audible alarm will react seriously as the gas concentration increase. *Detection Range: 50-10000ppm
- 【Flexible 17-inch Probe】 TopTes PT520B+ could detect any hard-to-reach area with a 17-inch gooseneck like gas stoves, natural gas lines, and basements. High and Low sensitivity could promote more accurate detection. Once gas leaks detected, you could turn it zero by ZERO button
- 【User-Friendly Choice】TopTes PT520B+ gas leak detector adopts anti-slip housing and ergonomic grip design. Mute button could dissolve annoying high-dB alarm. Temperature sensor (℉& ℃) offers more reference for accurate gas detection. With 10-min inaction, the detector will turn off to save the power
- 【What You Get】 1xPT520B+ Gas Leak Detector, 1x Micro USB line, 1x Protective case, 1x User Manual. We offer a 36-month after-sale service and lifetime technical support. Feel free to ask assistance from TopTes

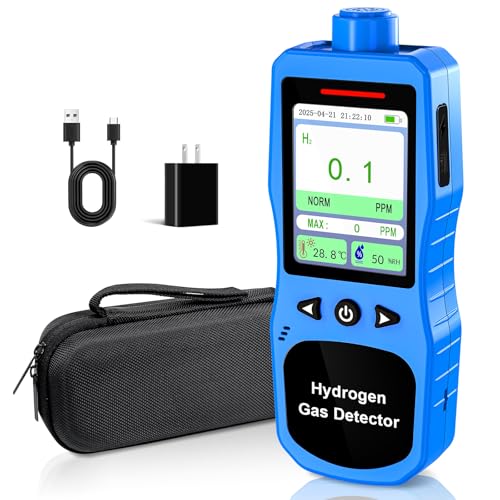

- 〖High Sensitive Sensor & Accurate Measurement〗Portable H2 gas monitor,Bulit-in high senstive electrochemical sensor measuring range 0~1000ppm with resolution 1ppm, can accurately detect H2 concentration in air. and the professional sampling pump can help you more accurately detect narrow or remote places Hydrogen gas concentration.
